KUKIRIN G3 Pro | P parameter setting method Tutorial

1. Insert the key, and turn the key to the right to power it on.
2. Press and hold the [power] to switch the machine on and off.
3. Short press the [power] button once after powering on to switch gears, divided into three gears.
4. Short press the single-drive switch once after powering on to switch between single-drive and dual-drive modes.

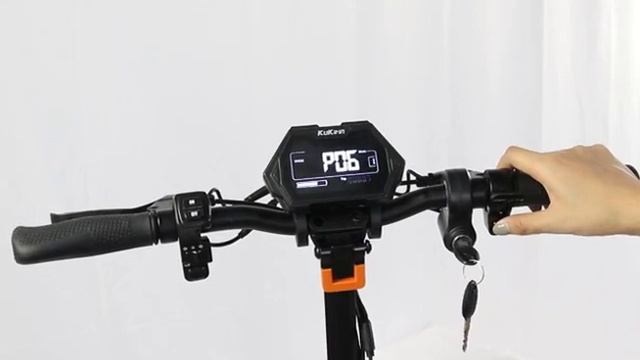

5. After the scooter is turned on, press the [power] button three times in a row to enter the menu setting interface, the display P1, P2, P3, P4, P6, P7, P8, Pa, Pb, Pc will be displayed. Press and hold the [power] button for 3 seconds, the value will flash:
----------------------------------
For example, How To Set/Cancel Cruise Control Mode: Turned scooter on, press the [power] button 3 times in a row to enter the menu setting interface,
and then press the [power] button to select the P05 parameter(after entering the menu setting, if the current parameter does not need to be modified, press the [power] button once and switch to the next parameter setting interface, such as the current P1, if you do not need to modify the setting then short press the [power] button once to switch to P2).
Press and hold the [power] button for 3 seconds, and the value will flash, to adjust the value (1 means set the cruise control, 0 means cancel cruise control.).
After adjusting to the parameters you want to adjust, press and hold the [MODE] button and the [power] button at the same time to exit the parameter setting, and the parameters are modified.
(Kindly Tip: Please pay attention to safety when using this cruise control mode. The cruise control still will continue to ride when the accelerator is released. To stop, you need to press the brake.)

------------------ Parameter meaning: ------------------
P01: Set the Speed/Mileage Unit, 0=km; 1=mile. KuKirin G3Pro - P01: Switching kilometres & miles unit tutorial https://youtu.be/HxiVHn9NlVQ

P02: Voltage level setting: (default 52V). If adjusted, the battery level will be confused.
P03: Wheel diameter: default 100 (100 means 10 inches). If adjusted, the speed display will be confused.
P04: Number of magnetic poles for speed measurement: range: 1-100, default 30.

P05: Cruise Control mode: 1 means to set the cruise control, 0 means cancel cruise control.
When the Cruise Control is turned on, the cruise icon flashes. (Kindly Tip: Please pay attention to safety when using this cruise control mode. The cruise control still will continue to ride when the accelerator is released. To stop, you need to press the brake.) KuKirin G3Pro - P05: Turn on & off cruise control mode tutorial https://youtu.be/yessbhzws20

P06: Sliding start, Static start startup settings. 0: zero start/static start; 1: non-zero starts/sliding start. The display shows the current startup mode: the non-zero starts will display NON. (In zero start mode, press the accelerator/throttle starts directly; In the non-zero start mode, you need to use your feet to help the scooter slide above 5km/h and press the accelerator to start.) KuKirin G3Pro - P06: Switching Static Start=Zero Start & Sliding Start=Non-Zero Start Mode Tutorial https://youtu.be/zJg-9RZB7P0

P07: Set Speed Limit mode. You can adjust the parameter value of P07 to limit the speed according to the maximum legal road speed stipulated by your country. KuKirin G3Pro - P07: Set speed limit and cancel speed limit tutorial https://youtu.be/mFic4xkSvbg

P08: Sleep time setting: 0 means no sleep; other numbers are sleep time, range: 1-60; the unit is minute. (default 5 minutes)
PA: Start Strength Setting, which is the starting drive strength when the throttle is pressed after switching on: range 1-5. 1=min, 5=max; default 1. If you feel that the start-up force after pressing the throttle is too strong, you can adjust it downwards.
PB: Brake strength setting: (default 0). not adjusted.
PC: Total mileage clear. Unrecoverable after being cleared. 0 - The mileage data is maintained and not cleared. 1 - The mileage data is cleared and reset to zero. If set 1, automatically exit the parameter setting page, and clear the mileage data, which cannot be restored.
