Getting Started With Abaqus | A Tutorial using solid elements смотреть онлайн

This is a tutorial for beginners on getting started with Abaqus. Steps on how to define geometry/part, create materials and sections, assigning materials and sections to a part, assembly and defining loads, running analysis and displaying output are elaborated in a simplified manner using a 3D plate as an example.

CONTENT
Preamble
0:00 Intro/Welcome remarks
0:42 (Recap) Types of finite elements
16:15 Shout out to a royal subscriber https://bit.ly/3hVYXQS
17:14 Students' assignment explanation
19:12 Install Abaqus software for free https://edu.3ds.com/en/software/abaqus-student-edition
24:13 Accessing Abaqus documentation
36:00 Getting started with Abaqus CAE
37:23 Abaqus GUI/Explanation of different modules
Example/Tutorial - Steel plate in simple tension
41:34 Create geometry (create part)
45:30 Define material properties

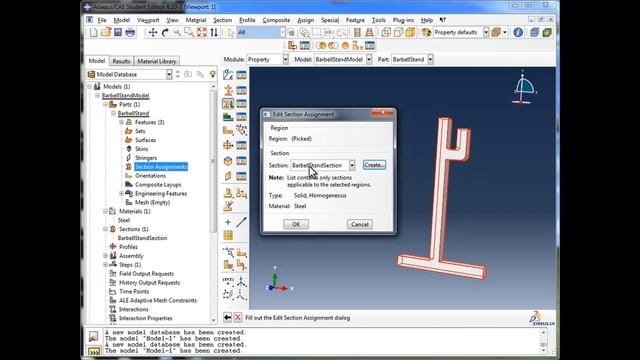

58:41 Define a section and assign a section to a part/geometry
1:00:58 Assign material properties to a section/part
1:03:51 Assembly
1:06:26 (optional) Create sets feature to apply loads and boundary conditions
1:08:20 Define analysis step & apply loads, BCs
1:17:34 Meshing
1:23:42 Configure analysis
1:28:00 Request output
1:33:30 Data check and Run analysis
1:35:22 View results
1:43:26 Generate X-Y data plots
Conclusion
1:49:10 Concluding remarks
1:49:48 Invitation to weekly live streams
1:50:00 Why you need to subscribe, share and like all my videos
1:50:40 Outro

You can install Abaqus student Edition from the official site https://edu.3ds.com/en/software/abaqus-student-edition
