DTC Hummer P069E Short Explanation

The video focuses on the basic Hummer specific diagnostic error code.
Contents:
0:21 Basic DTC analysis according to OBD2 protocol standard.
1:48 Insight into programming

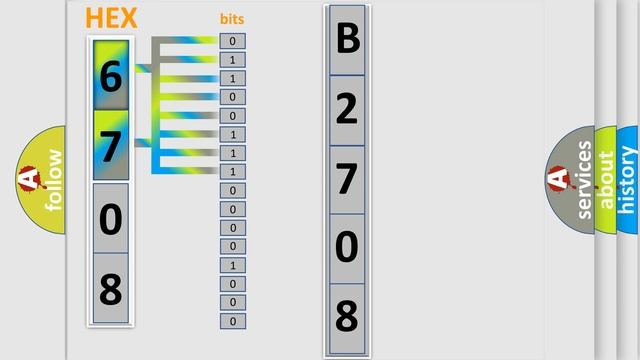

- an explanation of what a bit is and how a byte is formed
- decoding the Error Code to the base programming
2:58 A diagnostically understandable description of the Diagnostic Trouble Code
3:05 Basic error definition
- Possible causes or errors of the car and its parts describing the mentioned error

We will continue to work on improving the content.
Our efforts at Maxidot s.r.o.the video content gets better.

#maxidot #dtc #howto #diagnostictroublecode #hummer




Make:
HUMMER
Code:
P069E
Definition:
Lost Communication Between Fuel Pump Control Module and Restraints Control
Description:
The fuel pump control module monitors the duty cycle and frequency of the signal it receives from the Restraints Control Module (RCM).The fuel pump control module determines if the signal on the Event Notification Signal (ENS) circuit from the RCM is a valid duty cycle and frequency.If the duty cycle or frequency is invalid,the fuel pump control module sends a 40% duty cycle signal on the Fuel Pump Monitor (FPM) circuit to report the concern to the PCM.The test fails when the fuel pump control module is still reporting that it is receiving an invalid duty cycle or frequency from the RCM after a calibrated amount of time.Note: Check the harness for routing,alterations,incorrect shielding,or electrical interference from other systems.The ENS is used to notify the fuel pump control module of an event requiring the fuel pump to be disabled.This signal is used instead of an Inertia Fuel Shutoff (IFS) switch.
Cause:
ENS circuit open or short to ground ENS circuit short to voltage Radio Frequency Interference or Electro-Magnetic Interference (RFI or EMI) Damaged fuel pump control module Damaged RCM
