#Network #Surface #Command in #AutoCAD #3D

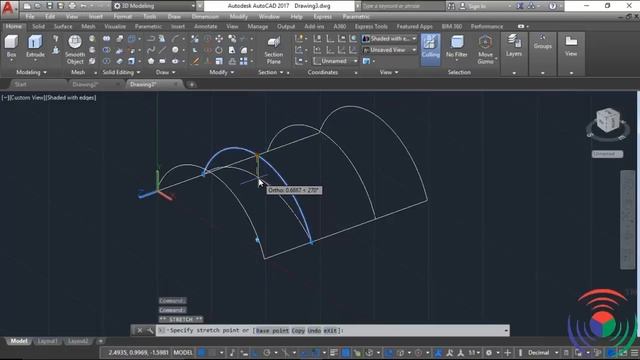

Network surface command in AutoCAD 3D
.
Website : https://www.aartigallery.com/
.
https://www.aartigallery.com/learnings
.
Buy Subscription Plans for Prime Videos : https://www.aartigallery.com/subscription
.
Description : SURFNETWORK (Command)
Creates a surface in the space between several curves in the U and V directions, including surface and solid edge subobjects.


A network surface can be created between a network of curves or between the edges of other 3D surfaces or solids.


The surface will be dependent on the curves or edges from which it was created if the SURFACEASSOCIATIVITY system variable is set to 1.

The following prompts display:

Select Curves or Surface Edges in the First Direction
Select a network of open curves, open surface edges, or region edges (not the surfaces or regions) for the U or V direction.

Select Curves or Surface Edges in the Second Direction
Select a network of open curves, open surface edges, or region edges (not the surfaces or regions) for the U or V direction.
