CNC FACTORY PYTHON XPR FLAT TABLE MACHINE (W/LOADING, UNLOADING) (FT-280122 )
https://www.exfactory.com/Detail/FT-280122

Specifications:
5' x 10' Flat Table "Bridge Gantry" machine with "Phenolic "MATRIX" grooved flat table for "NESTED BASE MANUFACTURING.
Working field:
"X" axis 122" (3,099 mm), “Y” axis 62” (1,575 mm), "Z" axis stroke is 12" (305 mm).
Positioning speed:
"X" & "Y" axis233 FPM (71 MPM),"Z" axis 82 FPM (25 MPM). Closed loop AC Servo drive system driving precision helical rack & pinion in "X" & "Y" axis &ground ball screw in "Z" axis.

All axes ride on extra large precision profile linear guide ways.
Work Table:
"MATRIX" grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested based machining".

Pneumatic Pop-Up Pins for manual and automatic material placement.
Machining
(1) 12 HP (9 kW) "HSD" Electro spindle with ISO 30adaptor, spindle speeds from 1,000 - 24,000 RPM.

(1) 12-position ATC tool plate mounted on the head for "on the fly" ATC.
Operator & Machine Control:

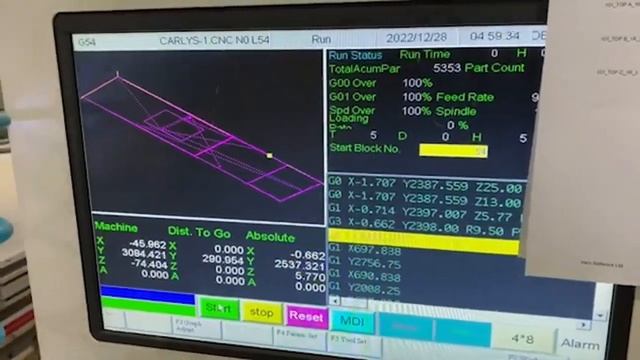

"SYNTEC 4E 21” graphic industrial control center with hand-held controller.

Built-in continuous operation file saving and production override with speed control G-Code compatible with virtual every Cad and software including USB and Ethernet file control.

Acceleration and deceleration working and repositioning. Tool wear history with built-in alarm stops. work coordinates and onscreen programming

19" High resolution monitor. Ergonomic industrial keyboard & mouse. USB drive; serial ports for RS-232; all housed in a separate dust free cabinet
Complete with
(1) 250 m³/Hr vacuum pump; auto tool length measuring sensor.
Options Include:
(1) NC controlled "Robotic" in-feed scissor-lift loading table. (1) Rake system; (1) NC controlled & powered belt out-feed table with vacuum sweeping system.
Actual Model is CNC FACTORY PYTHON XPR
