ATtiny167 / ATtiny87 Complete Programming Setup Guide plus Examples [Linux]

Video for doing this on Windows: https://www.youtube.com/watch?v=P2d0D73Pno0

Instructions document I put together (Video includes information not mentioned in document): https://docs.google.com/document/d/1RzgihUw_azecUdGE6SxZNcmUzsS0GPYkbrF3-ooSQbg/edit?usp=sharing


Basic instructions:
1. Set up breadboard with the following schematic: https://drive.google.com/file/d/0Bx_94ujbh0qoRGZvWGpRUDZzMnM/view?usp=sharing

2. Add attiny167 to arduino:
*Go to File/Preferences/Additional-Board-Manager and add http://drazzy.com/package_drazzy.com_index.json

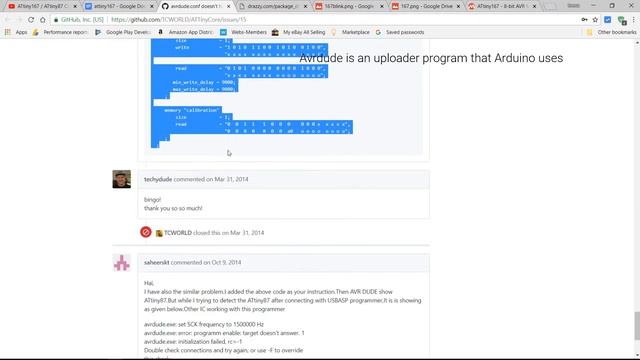

*In Linux edit: /usr/share/arduino/hardware/tools/avr/etc/avrdude.conf or /home/michael/.arduino15/packages/arduino/tools/avrdude/6.0.1-arduino5/etc/avrdude.conf and maybe even /etc/avrdude.conf with https://github.com/TCWORLD/ATTinyCore/issues/15

3. Configure attiny167 fuses to use 8 mhz internal clock:
*Downoad https://github.com/TCWORLD/ATTinyCore/tree/master/tiny/bootloaders/empty

*In Linux terminal run: [/home/michael/.arduino15/packages/arduino/tools/avrdude/6.0.1-arduino5/bin]$./avrdude -c avrisp -p t167 -P /dev/ttyUSB0 -b 19200 -U efuse:w:0xFF:m -U hfuse:w:0xD7:m -U lfuse:w:0xE2:m –U flash:w:empty167.hex:i

4.Upload ArduinoISP onto your arduino

5. Download Compatable Libraries if needed from https://github.com/digistump/DigistumpArduino
and install the ones you want to /home/michael/Arduino/libraries/



Links:
ATTiny167 Programming setup: https://drive.google.com/file/d/0Bx_94ujbh0qoRGZvWGpRUDZzMnM/view?usp=sharing

ATTiny167 URL for board manager: http://drazzy.com/package_drazzy.com_index.json

ATTiny167 Programming setup with LED: https://drive.google.com/file/d/0Bx_94ujbh0qob1YzY20yc0tpQ0U/view?usp=sharing

ATTiny167 Programming setup with Neopixels: https://drive.google.com/file/d/0Bx_94ujbh0qoMHJvUEdWeXBhOEU/view?usp=sharing

Neopixel library: https://github.com/adafruit/Adafruit_NeoPixel

Digistump extended libraries: https://github.com/digistump/DigistumpArduino

SOP to DIP product: https://www.ebay.com/i/251656008191

Avrdude.conf additional contents: https://github.com/TCWORLD/ATTinyCore/issues/15

ATtiny167 bootloader hex file: https://github.com/TCWORLD/ATTinyCore/tree/master/tiny/bootloaders/empty
